Video Surveillance Servers - exacqVision A-Series Hybrid & IP Servers
Performance & Configurability for Enterprise Surveillance Deployments
Servers Designed for Video Surveillance
exacqVision® A-Series 2U Rackmount Hybrid and IP Servers are designed specifically for exacqVision IP video surveillance applications.
Professional-class chassis engineered for cool-running operation, genuine Intel® processors, and Western Digital Enterprise hard drives provide exceptionally reliable platforms optimized for video surveillance.
A-Series servers utilize Intel® Core™ processors for maximum performance even in the most demanding configurations.
Windows or Linux
Each A-Series server is available with either Windows 7 or Linux OS, depending on the customer requirements. Linux versions come with the OS and exacqVision apps on a solid-state drive for increased reliability.
Chassis for all requirements
A-Series servers are available in professional rack-mount chassis for installation in data centers; and compact desktop chassis, ideal for retail, quick-serve restaurants, or space-constrained installations.
Easy Setup & Installation
A-Series servers come with all exacqVision software apps and camera licenses installed and configured for out-of-the-box deployment.
Three Years Software Updates & Warranty
All A-Series servers include 3 years of exacqVision software updates, and 3 years hardware warranty.
Features:
- Professional-class servers designed for video surveillance
-
Pre-installed, pre-configured exacqVision
software for out-of-the-box installation - 3 years software updates and warranty
- Hybrid models: Analog camera inputs of 16, 32, 48 or 64 per server
- Hybrid models: 8 IP camera licenses included, expandable to 64
- IP models: from 1 to 64 IP licenses
True Hybrid
- Seamless integration and management of analog and IP cameras
- Up to 64 Analog cameras and 64 IP cameras
Simple Licensing, Easy to Upgrade
- Simple, single license for all cameras on each server
- Easily upgrade license to add additional cameras
High Performance, High Reliability
- Employs Intel® Core™ famililies of processors
- Cool-running operation ensures optimum performance over the long term
- Uses Western Digital Enterprise hard drives for maximum reliability
- OS and exacqVision Server apps on solid state drive*
Wide IP Camera Support
- Supports hundreds of IP cameras and encoders from the leading manufacturers.
- Digital PTZ functionality on all cameras in live and recorded mode.
- Analog PTZ protocols supported: Pelco D/P, GE-Impac, GE-ASCII, AD-RS422, Bosch, Panasonic
Award-winning exacqVision VMS Software
- Intuitive user interface requires little to no training
- Connect with exacqVision client, available in Windows, Linux or Mac OSX versions
- Common client connects to multiple exacqVision servers to create scalable networks
- Easy-to-use, powerful video and audio export features
- Multi-monitor client display. Drag and drop cameras between monitors
- Graphical search display for all cameras and recorded audio
- Easy to use multi-camera playback and export
- Definable user permissions and privileges
- Includes web browser client access and exacq Mobile apps for iPhone, iPad and Android devices

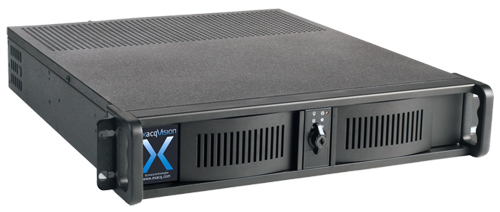

exacqVision 2U Rackmount IP & Hybrid Servers Specifications:
Updated 27 February 2012
|
2U IPS Servers |
2U Hybrid Servers |
|
Drive Bays |
3 internal |
3 internal |
Storage Max (internal) |
6.0 TB |
6.0 TB |
Drive type |
Western Digital Enterprise drives |
Western Digital Enterprise drives |
Drive Configuration |
JBOD |
JBOD |
Analog Video Inputs |
- | 16 (with looping) or 32 (no looping), BNC |
Analog Video Outputs |
- | 2 (16-in) or 4 (32-in), BNC |
Analog Recording Resolution |
- |
CIF: 352x240 NTSC / 352x288 PAL 2CIF: 720x240 NTSC / 720x288 PAL 4CIF (D1): 720x480 NTSC / 720x576 PAL |
Analog Video Frame Rate |
- |
NTSC: 120/240/480/960 IPS PAL: 100/200/400/800 IPS |
Analog Compression |
- | MPEG-4 ASP or MJPEG hardware compression |
IP Camera Inputs |
up to 64 |
8 IP licenses included, up to 64 |
IP Camera Recording Resolution |
Up to 20 Megapixel, IP camera dependent |
Up to 20 Megapixel, IP camera dependent |
IP Camera Frame Rate |
Camera dependent |
Camera dependent |
IP Camera Compression |
H.264, MPEG-4, MJPEG IP camera dependent |
H.264, MPEG-4, MJPEG IP camera dependent |
Alarm Inputs |
8 (optional) |
16 TTL inputs - screw terminal |
Alarm Outputs |
8 (optional) |
15 TTL and 1 relay output - screw terminal |
Audio Inputs |
4 (optional) + IP camera audio |
4 inputs (screw terminal) + IP camera audio |
Serial Connections |
RS-232 port |
RS-232 port, RS-485 PTZ port |
NIC (GB) |
2 |
2 |
Processor |
Intel® Core™ i3 - Standard Intel® Core™ i5 - Performance option |
Intel® Core™2 |
RAM |
2 GB - Standard 4 GB - Performance option |
2 GB |
USB2 Ports |
8 (2 front, 6 rear) |
8 (2 front, 6 rear) |
VGA Output |
1 VGA + 2 HDMI 1.4 (incl. HDMI-DVI-D converter) two simultaneous monitors maximum |
1 VGA
|
Keyboard & Mouse |
Included |
Included |
DVD/CD RW |
Included (front panel access) |
Included (front panel access) |
Watchdog Timer |
- |
Included |
exacqVision VMS Software included |
exacqVision Pro exacqVision Enterprise Server (optional) |
exacqVision Pro exacqVision Enterprise Server (optional) |
Server Operating Systems |
Windows 7 Pro (standard) |
Windows 7 Pro (standard) |
Compatible Client Operating Systems |
Windows 7/Vista/XP/Server
2003/2008 |
Windows 7/Vista/XP/Server
2003/2008 |
Regulatory |
CE (Class A), FCC (Class A) |
CE (Class A), FCC (Class A) |
Warranty |
3 years, parts & labor |
3 years, parts & labor |
Dimensions (LxWxH) |
21.25 x 16.75 x 3.5 (2U) inches 54.7 x 42.6 x 8.9 cm |
21.25 x 16.75 x 3.5 (2U) inches 54.7 x 42.6 x 8.9 cm |
Weight |
27 - 31 lbs 12.3 - 14.1 kg |
27 - 31 lbs 12.3 - 14.1 kg |
Operating Temperature |
40° -95°F (4.5° - 35°C) |
40° -95°F (4.5° - 35°C) |
Relative Humidity |
5 - 95% RH (non-condensing) |
5 - 95% RH (non-condensing) |
Input voltage |
120/240 VAC auto-sensing |
120/240 VAC auto-sensing |
Power consumption |
<250 Watts (150 Watts typical) |
<250 Watts (150 Watts typical) |

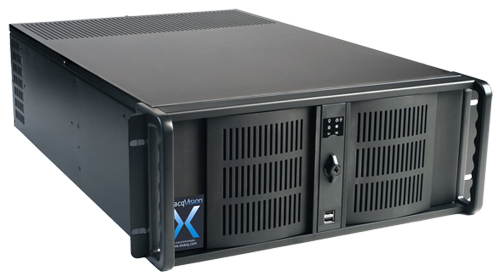

exacqVision 4U Rackmount IP & Hybrid Servers Specifications:
Updated 24 February 2012
|
4U IPS Servers |
4U Hybrid Servers |
|
Drive Bays |
8 internal |
8 internal |
Storage Max (internal) |
16.0 TB |
16.0 TB |
Drive type |
Western Digital Enterprise drives |
Western Digital Enterprise drives |
Drive Configuration |
JBOD or RAID-5 |
JBOD or RAID-5 |
Analog Video Inputs |
- | 16 (looping) or 32/48/64 (no looping), BNC |
Analog Video Outputs |
- | 2 (16-in), 4 (32-in), 6 (48-in), or 8 (64-in) BNC |
Analog Recording Resolution |
- |
CIF: 352x240 NTSC / 352x288 PAL 2CIF: 720x240 NTSC / 720x288 PAL 4CIF (D1): 720x480 NTSC / 720x576 PAL |
Analog Video Frame Rate |
- |
NTSC: 120/240/480/960/1440/1920 IPS PAL: 100/200/400/800/1200/1600 IPS |
Analog Compression |
- | MPEG-4 ASP or MJPEG hardware compression |
IP Camera Inputs |
up to 64 |
8 IP licenses included, up to 64 |
IP Camera Recording Resolution |
Up to 20 Megapixel, IP camera dependent |
Up to 20 Megapixel, IP camera dependent |
IP Camera Frame Rate |
Camera dependent |
Camera dependent |
IP Camera Compression |
H.264, MPEG-4, MJPEG IP camera dependent |
H.264, MPEG-4, MJPEG IP camera dependent |
Alarm Inputs |
8 (optional) |
16-in model: 16 TTL inputs - screw terminal 32-in model: 32 TTL inputs - screw terminal 48/64-in models: 8 TTL inputs - screw terminal |
Alarm Outputs |
8 (optional) |
16-in model: 15 TTL & 1 relay out - screw terminal 32-in model: 30 TTL & 2 relay out - screw terminal 48/64-in models: 1 relay out - screw terminal |
Audio Inputs |
4 (optional) IP camera audio |
16-in model: 4 inputs (screw terminal) 32-in model: 8 inputs (screw terminal) 48/64-in model: 1 input (screw terminal) IP camera audio |
Serial Connections |
RS-232 port |
RS-232 port, RS-485 PTZ port |
NIC (GB) |
2 |
2 |
Processor |
Intel® Core™ i3 - Standard Intel® Core™ i5 - Performance option |
16-in model: Intel® Core™ i3 - Standard Intel® Core™ i5 - Performance option
32, 48 & 64-in models: Intel® Core™2 |
RAM |
2 GB - Standard 4 GB - Performance option |
16-in model: 2 GB - Standard 4 GB - Performance option
32, 48 & 64-in models: 2 GB |
USB2 Ports |
8 (2 front, 6 rear) |
16-in & 32-in models: 8 (2 front, 6 rear) 48-in & 64-in models: 6 (2 front, 4 rear) |
VGA Output |
1 VGA + 2 HDMI 1.4 (incl. HDMI-DVI-D converter) two simultaneous monitors maximum |
16-in model: 1 VGA + 2 HDMI 1.4 (incl. HDMI-DVI-D converter) two simultaneous monitors maximum
32, 48 & 64-in models: 1 VGA |
Keyboard & Mouse |
Included |
Included |
DVD/CD RW |
Included (front panel access) |
Included (front panel access) |
Redundant Power Supply |
Optional |
Optional |
Watchdog Timer |
- |
Included |
exacqVision VMS Software included |
exacqVision Pro exacqVision Enterprise Server (optional) |
exacqVision Pro exacqVision Enterprise Server (optional) |
ServerOperating Systems |
Windows 7 Pro (standard) |
Windows 7 Pro (standard) |
Compatible Client Operating Systems |
Windows 7/Vista/XP/Server
2003/2008 |
Windows 7/Vista/XP/Server
2003/2008 |
Regulatory |
CE (Class A), FCC (Class A) |
CE (Class A), FCC (Class A) |
Warranty |
3 years, parts & labor |
3 years, parts & labor |
Dimensions (LxWxH) |
28.00 x 16.75 x 7.00 (4U)
inches |
28.00 x 16.75 x 7.00 (4U)
inches |
Weight |
44 - 60 lbs |
44 - 60 lbs |
Operating Temperature |
40° -95°F (4.5° - 35°C) |
40° -95°F (4.5° - 35°C) |
Relative Humidity |
5 - 95% RH (non-condensing) |
5 - 95% RH (non-condensing) |
Input voltage |
120/240 VAC auto-sensing |
120/240 VAC auto-sensing |
Power consumption |
<250 Watts (150 Watts typical) |
<250 Watts (150 Watts typical) |
exacqVision Compact Desktop IP & Hybrid Servers Specifications:
Updated 24 February 2012
|
Desktop IPS Servers |
Desktop Hybrid Servers |
|
Drive Bays |
2 internal |
2 internal |
Storage Max (internal) |
4.0 TB |
4.0 TB |
Drive type |
Western Digital Enterprise drives |
Western Digital Enterprise drives |
Drive Configuration |
JBOD |
JBOD |
Analog Video Inputs |
- | 16, BNC |
Analog Video Outputs |
- | 1 mux output, BNC |
Analog Recording Resolution |
- |
CIF: 352x240 NTSC / 352x288 PAL 2CIF: 720x240 NTSC / 720x288 PAL 4CIF (D1): 720x480 NTSC / 720x576 PAL |
Analog Video Frame Rate |
- |
NTSC: 120/480 IPS PAL: 100/400 IPS |
Analog Compression |
- | MPEG-4 ASP or MJPEG hardware compression |
IP Camera Inputs |
up to 64 |
8 IP licenses included, up to 64 |
IP Camera Recording Resolution |
Up to 20 Megapixel, IP camera dependent |
Up to 20 Megapixel, IP camera dependent |
IP Camera Frame Rate |
Camera dependent |
Camera dependent |
IP Camera Compression |
H.264, MPEG-4, MJPEG IP camera dependent |
H.264, MPEG-4, MJPEG IP camera dependent |
Alarm Inputs |
8 (optional) |
8 TTL inputs - screw terminal |
Alarm Outputs |
8 (optional) |
1 relay out - screw terminal |
Audio Inputs |
4 (optional) IP camera audio |
4 audio inputs - screw terminal IP camera audio |
Audio Outputs |
1 |
1 |
Serial Connections |
RS-232 port |
RS-232 port, RS-485 PTZ port |
NIC (GB) |
2 |
2 |
Processor |
Intel® Core™ i3 - Standard Intel® Core™ i5 - Performance option |
Intel® Core™ i3 - Standard Intel® Core™ i5 - Performance option |
RAM |
2 GB - Standard 4 GB - Performance option |
2 GB - Standard 4 GB - Performance option |
USB2 Ports |
8 (2 front, 6 rear) |
8 (2 front, 6 rear) |
VGA Output |
1 VGA + 2 HDMI 1.4 (incl. HDMI-DVI-D converter) two simultaneous monitors maximum |
1 VGA + 2 HDMI 1.4 (incl. HDMI-DVI-D converter) two simultaneous monitors maximum |
Keyboard & Mouse |
Included |
Included |
DVD/CD RW |
Included (front panel access) |
Included (front panel access) |
Watchdog Timer |
- |
Included |
exacqVision VMS Software included |
exacqVision Pro exacqVision Enterprise Server (optional) |
exacqVision Pro exacqVision Enterprise Server (optional) |
Server Operating Systems |
Windows 7 Pro (standard) |
Windows 7 Pro (standard) |
Compatible Client Operating Systems |
Windows 7/Vista/XP/Server
2003/2008 |
Windows 7/Vista/XP/Server
2003/2008 |
Regulatory |
CE (Class A), FCC (Class A) |
CE (Class A), FCC (Class A) |
Warranty |
3 years, parts & labor |
3 years, parts & labor |
Dimensions (LxWxH) |
15.675 x 13.0 x 5.375 inches
|
15.675 x 13.0 x 5.375 inches
|
Weight |
18.5 - 22.0 lbs |
18.5 - 22.0 lbs |
Operating Temperature |
40° -95°F (4.5° - 35°C) |
40° -95°F (4.5° - 35°C) |
Relative Humidity |
5 - 95% RH (non-condensing) |
5 - 95% RH (non-condensing) |
Input voltage |
120/240 VAC auto-sensing |
120/240 VAC auto-sensing |
Power consumption |
<250 Watts (150 Watts typical) |
<250 Watts (150 Watts typical) |
| A-Series 2U
Hybrid Server:
A-Series 4U Hybrid Server:
A-Series Compact Desktop Hybrid Server:
|
The following A-Series models are currently available:
The following A-Series models are currently available:
Hybrid 2U, 16 inputs 120FPS |
Storage Size |
Rackmount 2U server with 8 IP licenses, 16 looped analog inputs, 120FPS, RS-232/485 serial port, 1 spot and 1 multiplexed monitor output, 16 alarm inputs, 15 alarm outputs, 4 audio inputs, dual Gb NIC, 1 VGA, DVD, Win 7 or Ubuntu 10.04 linux, keyboard and mouse, exacqVision client and server software pre-installed, 3 year warranty and software updates.
1608-12-0500-R2 |
500 GB |
1608-12-1000-R2 |
1 TB |
1608-12-2000-R2 |
2 TB |
1608-12-3000-R2 |
3 TB |
1608-12-4000-R2 |
4 TB |
1608-12-6000-R2 |
6 TB |
Linux option available by adding "-L" to the product's part number.
Hybrid 2U, 16 inputs 480FPS |
Storage Size |
Rackmount 2U server with 8 IP licenses, 16 looped analog inputs, 480FPS, RS-232/485 serial port, 1 spot and 1 multiplexed monitor output, 16 alarm inputs, 15 alarm outputs, 4 audio inputs, dual Gb NIC, 1 VGA, DVD, Win 7 or Ubuntu 10.04 linux, keyboard and mouse, exacqVision client and server software pre-installed, 3 year warranty and software updates.
1608-48-0500-R2 |
500 GB |
1608-48-1000-R2 |
1 TB |
1608-48-2000-R2 |
2 TB |
1608-48-3000-R2 |
3 TB |
1608-48-4000-R2 |
4 TB |
1608-48-6000-R2 |
6 TB |
Linux option available by adding "-L" to the product's part number.
Hybrid 2U, 32 inputs 240FPS |
Storage Size |
Rackmount 2U server with 8 IP licenses, 32 analog inputs, 240FPS, RS-232/485 serial port, 2 spot and 2 multiplexed monitor output, 16 alarm inputs, 15 alarm outputs, 4 audio inputs, dual Gb NIC, 1 VGA, DVD, Win 7 or Ubuntu 10.04 linux, keyboard and mouse, exacqVision client and server software pre-installed, 3 year warranty and software updates.
3208-24-0500-R2 |
500 GB |
3208-24-1000-R2 |
1 TB |
3208-24-2000-R2 |
2 TB |
3208-24-3000-R2 |
3 TB |
3208-24-4000-R2 |
4 TB |
3208-24-6000-R2 |
6 TB |
Linux option available by adding "-L" to the product's part number.
Hybrid 2U, 32 inputs 960FPS |
Storage Size |
Rackmount 2U server with 8 IP licenses, 32 analog inputs, 960FPS, RS-232/485 serial port, 2 spot and 2 multiplexed monitor output, 16 alarm inputs, 15 alarm outputs, 4 audio inputs, dual Gb NIC, VGA, DVD, Win 7 or Ubuntu 10.04 linux, keyboard and mouse, exacqVision client and server software pre-installed, 3 year warranty and software updates.
3208-96-0500-R2 |
500 GB |
3208-96-1000-R2 |
1 TB |
3208-96-2000-R2 |
2 TB |
3208-96-3000-R2 |
3 TB |
3208-96-4000-R2 |
4 TB |
3208-96-6000-R2 |
6 TB |
Linux option available by adding "-L" to the product's part number.
Hybrid 4U, 16 inputs 480FPS |
Storage Size |
Rackmount 4U server with 8 IP licenses, 16 looped analog inputs, 480FPS, RS-232/485 serial port, 1 spot and 1 multiplexed monitor output, 16 alarm inputs, 15 alarm outputs, 4 audio inputs, dual Gb NIC, i3 CPU, 2 HDMI + 1 VGA (2 max. simultaneous), DVD, Win 7 or Ubuntu 10.04 linux, keyboard and mouse, exacqvision client and server software pre-installed, 3 year warranty and software updates.
1608-48-010T-R4 |
10 TB |
1608-48-012T-R4 |
12 TB |
1608-48-014T-R4 |
14 TB |
1608-48-016T-R4 |
16 TB |
1608-48-8000-R4 |
8 TB |
1608-48-010T-R4-RAID5 |
8 TB |
1608-48-012T-R4-RAID5 |
10 TB |
1608-48-014T-R4-RAID5 |
12 TB |
1608-48-016T-R4-RAID5 |
14 TB |
1608-48-4000-R4-RAID5 |
3 TB |
1608-48-6000-R4-RAID5 |
5 TB |
1608-48-8000-R4-RAID5 |
6 TB |
Linux option available by adding "-L" to the product's part number.
Hybrid 4U, 32 inputs 240FPS |
Storage Size |
Rackmount 4U server with 8 IP licenses, 32 analog inputs, 240FPS, RS-232/485 serial port, 2 spot and 2 multiplexed monitor output, 32 alarm inputs, 30 alarm outputs, 8 audio inputs, dual Gb NIC, 1 VGA, DVD, Win 7 or Ubuntu 10.04 linux, keyboard and mouse, exacqvision client and server software pre-installed, 3 year warranty and software updates.
3208-24-010T-R4 |
10 TB |
3208-24-012T-R4 |
12 TB |
3208-24-014T-R4 |
14 TB |
3208-24-016T-R4 |
16 TB |
3208-24-8000-R4 |
8 TB |
Linux option available by adding "-L" to the product's part number.
Hybrid 4U, 32 inputs 960FPS |
Storage Size |
Rackmount 4U server with 8 IP licenses, 32 analog inputs, 960FPS, RS-232/485 serial port, 2 spot and 2 multiplexed monitor output, 32 alarm inputs, 30 alarm outputs, 8 audio inputs, dual Gb NIC, 1 VGA, DVD, Win 7 or Ubuntu 10.04 linux, keyboard and mouse, exacqvision client and server software pre-installed, 3 year warranty and software updates.
3208-96-010T-R4 |
10 TB |
3208-96-012T-R4 |
12 TB |
3208-96-014T-R4 |
14 TB |
3208-96-016T-R4 |
16 TB |
3208-96-8000-R4 |
8 TB |
3208-96-010T-R4-RAID5 |
8 TB |
3208-96-012T-R4-RAID5 |
10 TB |
3208-96-014T-R4-RAID5 |
12 TB |
3208-96-016T-R4-RAID5 |
14 TB |
3208-96-4000-R4-RAID5 |
3 TB |
3208-96-6000-R4-RAID5 |
5 TB |
3208-96-8000-R4-RAID5 |
6 TB |
Linux option available by adding "-L" to the product's part number.
Hybrid 4U, 48 inputs 1440FPS |
Storage Size |
Rackmount 4U server with 8 IP licenses, 48 analog inputs, 1440FPS, RS-232/485 serial port, 3 spot and 3 multiplexed monitor output, 8 alarm inputs, 1 alarm output, 8 audio input, dual Gb NIC, Core 2 Quad CPU, VGA Connection, DVD, Win 7 or Ubuntu 10.04 linux, keyboard and mouse, exacqVision client and server software pre-installed, 3 year warranty and software updates.
4808-144-010T-R4 |
10 TB |
4808-144-012T-R4 |
12 TB |
4808-144-014T-R4 |
14 TB |
4808-144-016T-R4 |
16 TB |
4808-144-4000-R4 |
4 TB |
4808-144-6000-R4 |
6 TB |
4808-144-8000-R4 |
8 TB |
4808-144-010T-R4-RAID5 |
8 TB |
4808-144-012T-R4-RAID5 |
10 TB |
4808-144-014T-R4-RAID5 |
12 TB |
4808-144-016T-R4-RAID5 |
14 TB |
4808-144-4000-R4-RAID5 |
3 TB |
4808-144-6000-R4-RAID5 |
5 TB |
4808-144-8000-R4-RAID5 |
6 TB |
Linux option available by adding "-L" to the product's part number.
Hybrid 4U, 64 inputs 1920FPS |
Storage Size |
Rackmount 4U server with 8 IP licenses, 64 analog inputs, 1920FPS, RS-232/485 serial port, 4 spot and 4 multiplexed monitor output, 8 alarm inputs, 1 alarm output, 8 audio input, dual Gb NIC, Core 2 Quad CPU, VGA Connection, DVD, Win 7 or Ubuntu 10.04 linux, keyboard and mouse, exacqVision client and server software pre-installed, 3 year warranty and software updates.
6408-192-010T-R4 |
10 TB |
6408-192-012T-R4 |
12 TB |
6408-192-014T-R4 |
14 TB |
6408-192-016T-R4 |
16 TB |
6408-192-4000-R4 |
4 TB |
6408-192-6000-R4 |
6 TB |
6408-192-8000-R4 |
8 TB |
6408-192-010T-R4-RAID5 |
8 TB |
6408-192-012T-R4-RAID5 |
10 TB |
6408-192-014T-R4-RAID5 |
12 TB |
6408-192-016T-R4-RAID5 |
14 TB |
6408-192-4000-R4-RAID5 |
3 TB |
6408-192-6000-R4-RAID5 |
5 TB |
6408-192-8000-R4-RAID5 |
6 TB |
Linux option available by adding "-L" to the product's part number.
Hybrid Desktop, 16in 120FPS |
Storage Size |
Desktop hybrid server with 8 IP licenses, 16 analog inputs, 120FPS, RS-232/485 serial port, 1 spot and 1 multiplexed monitor output, 8 alarm inputs, 4 audio inputs, dual Gb NIC, i3 CPU, 2 HDMI + 1 VGA (2 max. simultaneous), DVD, Win 7 or Ubuntu 10.04 linux, keyboard and mouse, exacqVision client and server software pre-installed, 3 year warranty and software updates.
1608-12-0500-DT |
500 GB |
1608-12-1000-DT |
1 TB |
1608-12-2000-DT |
2 TB |
1608-12-4000-DT |
4 TB |
Linux option available by adding "-L" to the product's part number.
Hybrid Desktop, 16in 480FPS |
Storage Size |
Desktop hybrid server with 8 IP licenses, 16 analog inputs, 480FPS, RS-232/485 serial port, 1 spot and 1 multiplexed monitor output, 8 alarm inputs, 4 audio inputs, dual Gb NIC, i3 CPU, 2 HDMI + 1 VGA (2 max. simultaneous), DVD, Win 7 or Ubuntu 10.04 linux, keyboard and mouse, exacqVision client and server software pre-installed, 3 year warranty and software updates.
1608-48-0500-DT |
500 GB |
1608-48-1000-DT |
1 TB |
1608-48-2000-DT |
2 TB |
1608-48-4000-DT |
4 TB |
Linux option available by adding "-L" to the product's part number.
IPS 2U |
Storage Size |
IP 2U server, RS-232 serial port, 1 audio input, dual Gb NIC, i3 CPU, 2 HDMI + 1 VGA (2 max. simultaneous), DVD, Win 7 or Ubuntu 10.04 linux, keyboard and mouse, exacqVision client and server software pre-installed, 3 year warranty and software updates.
IPS-0500-R2 |
500 GB |
IPS-1000-R2 |
1 TB |
IPS-2000-R2 |
2 TB |
IPS-3000-R2 |
3 TB |
IPS-4000-R2 |
4 TB |
IPS-6000-R2 |
6 TB |
Linux option available by adding "-L" to the product's part number.
IPS 4U |
Storage Size |
IP 4U server, RS-232 serial port, 1 audio input, dual Gb NIC, i3 CPU, 2 HDMI + 1 VGA (2 max. simultaneous), DVD, Win 7 or Ubuntu 10.04 linux, keyboard and mouse, exacqVision client and server software pre-installed, 3 year warranty and software updates.
IPS-010T-R4 |
10 TB |
IPS-012T-R4 |
12 TB |
IPS-014T-R4 |
14 TB |
IPS-016T-R4 |
16 TB |
IPS-8000-R4 |
8 TB |
IPS-010T-R4-RAID5 |
8 TB |
IPS-012T-R4-RAID5 |
10 TB |
IPS-014T-R4-RAID5 |
12 TB |
IPS-016T-R4-RAID5 |
14 TB |
IPS-4000-R4-RAID5 |
3 TB |
IPS-6000-R4-RAID5 |
5 TB |
IPS-8000-R4-RAID5 |
6 TB |
Linux option available by adding "-L" to the product's part number.
IPS Desktop |
Storage Size |
Desktop IP Server, RS-232 serial port, 1 audio input, dual Gb NIC, i3 CPU, 2 HDMI + 1 VGA (2 max. simultaneous), DVD, Win 7 or Ubuntu 10.04 linux, keyboard and mouse, exacqVision client and server software pre-installed, 3 year warranty and software updates.
IPS-0250-DT |
250 GB |
IPS-0500-DT |
500 GB |
IPS-1000-DT |
1 TB |
IPS-2000-DT |
2 TB |
IPS-4000-DT |
4 TB |
Linux option available by adding "-L" to the product's part number.
HD-SDI Desktop, 16 inputs 120FPS, 4 HD-SDI |
Storage Size |
Desktop HD-SDI server with 8 IP licenses, 16 analog inputs, 4 HD-SDI inputs, 480 analog FPS, 120 HD-SDI FPS, RS-232/485 serial port, 1 spot and 1 multiplexed monitor output, 8 alarm inputs, 1 audio input, dual Gb NIC, i3 CPU, 2 HDMI + 1 VGA (2 max. simultaneous), DVD, Win 7 or Ubuntu 10.04 linux, keyboard and mouse, exacqVision client and server software pre-installed, 3 year warranty and software updates.
1608-48-0500-HDSD |
500 GB |
1608-48-1000-HDSD |
1 TB |
1608-48-2000-HDSD |
2 TB |
1608-48-4000-HDSD |
4 TB |
Linux option available by adding "-L" to the product's part number.
